LEGO Interactive Wall

Step 1: Bill of Materials (BOM) List

Bare Conductive Touch Board Starter Kit

The Touch Board Kit includes:

Bare Conductive Touch Board Starter Kit

• Bare Conductive Touch Board Starter Kit

  • 1 x MicroSD card! Wahoo!
  • 1 x Touch Board
  • 1 x Electric Paint 10ml Tube
  • 1 x Electric Paint 50ml Jar
  • 1 x Guidebook
  • 1 x MicroSD Card Reader
  • 1 x Micro USB Cable
  • 1 x Mini Speaker
  • 10 x Alligator Clips
  • 1 x Stencil
  • 1 x Stencil Brush
  • 12 x Sticky Tabs
  • 3 x Velcro Stickers
  • 2 x Paper Cutouts

Step 2: LEGO Baseplates

I used 92 x Blue LEGO Base plates that measure 32x32 studs or 10" square.

You can make the wall any size you want.

You don't have to drill sheets of plywood into your wall, you could just use the Liquid Nails to apply the LEGO Baseplates to your wall. I choose to use plywood and a few screws so if I ever sell my house one day I wouldn't have to sheetrock the walls when trying to remove the LEGO baseplates.

I let the wall completely dry for 24 hours before I started to add brick designs and electronics.

Step 3: Bare Conductive Touch Board

Power Up

Plug your micro USB cable into the Touch Board. You can power the board directly from your computer or from a USB charger. Make sure the on/off switch at the bottom left hand corner of your Touch Board is switched to ON. You should see the green light next to the on/ off switch come on. This means your Touch Board is live.

Audio Jack

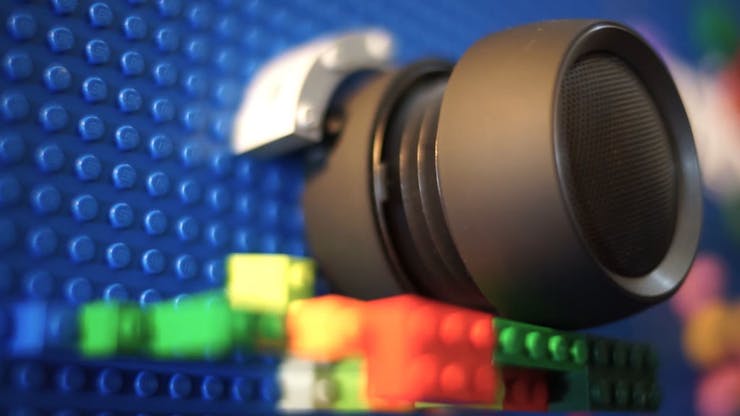

Plug your speaker (or headphones) into the audio jack on the top left hand corner of your board.

Electrodes

Now, touch the electrode on the upper lefthand corner of your board. Can you hear Becky’s voice? The electrodes are the twelve golden squares that run along the top edge of your Touch Board. They are numbered E0 to E11. Listen to the Audio Guide to find out more about the Touch Board and it’s different features. Once you’ve explored it and you’re ready to upload your own sounds, just move on to the next tutorial.

Step 4: Load Sounds on the MicroSD Card

The Touch Board comes pre-loaded with an Audio Guide to help you with all it’s features. One of the first things you may want to do is change the sounds that the Electrodes will trigger. Changing the sounds on your Micro SD by plugging in the micro SD card into your computer, it should show up on your desktop under the name “TB AUDIO”.

When you click on it, you should see a series of files that look like the image on the right. The document titled “README.txt” contains instructions on the Touch Board Audio, as well as the Audio Guide in written form. Don’t delete this document unless you remember everything and will never forget the instructions ever again.

Amie's in Game-Hint:

It's important that you keep all the files in the top level of the SD card, a lot of these files are related to the workings of the Touch Board, so deleting or moving them may affect your board’s functionality. You will see twelve tracks titled:

TRACK000.mp3

TRACK001.mp3

TRACK002.mp3 up to TRACK011.mp3

00 is for electrode 0, 01 is for electrode 1, 02 is for electrode 3, each TRACK name has to be named to match the electrode. Also make sure you do not have multiples on the SD Card (example TRACK000.mp3 TRACK000.mp3)

These are the files you need to replace to input your own audio. Bare Conductive recommended mp3cut to clip your own mp3 sound files. It free, simple and easy to use. Make sure the files are named correctly on the sd card.

Step 5: What Is Conductive Electric Paint?

Bare Conductive Electric Paint

Bare Conductive Electric Paint

Electric Paint conducts electricity when dry. You can paint, stencil or screen print, it's air­‐drying non-toxic and solvent free. Must be fully dry to work. Easily removable with soap and water. Seal with acrylic paint or spray varnish. Can last years if treated properly and kept dry.

Works on:

  • Paper
  • Cardboard
  • Wood
  • Plastic
  • Glass
  • Plaster
  • Some rubbers
  • LEGO
  • Textiles, etc…
  • Connect batteries
  • LEDs and other components
  • Great for attaching components and for PCB repair.
  • Can be used as a cold solder and wire paint.
  • Can be used with conductive thread and e-textiles.
  • Can be painted or sprayed over for protection or multi-layered circuitry
  • Surface resistivity approx 55 ohms/square at 50 microns layer thickness

Other project examples and resources at Bare Conductive Make.

Step 6: Apply Electric Paint to Electrodes and Wall

Apply Electric Paint to each Electrode on Touch Board

Apply Electric Paint to each Electrode on Touch Board

1 / 2

It takes 15-30 minutes to dry. You can see the paint starts to have a 'matte' finish look when dry.

Step 7: Questions?

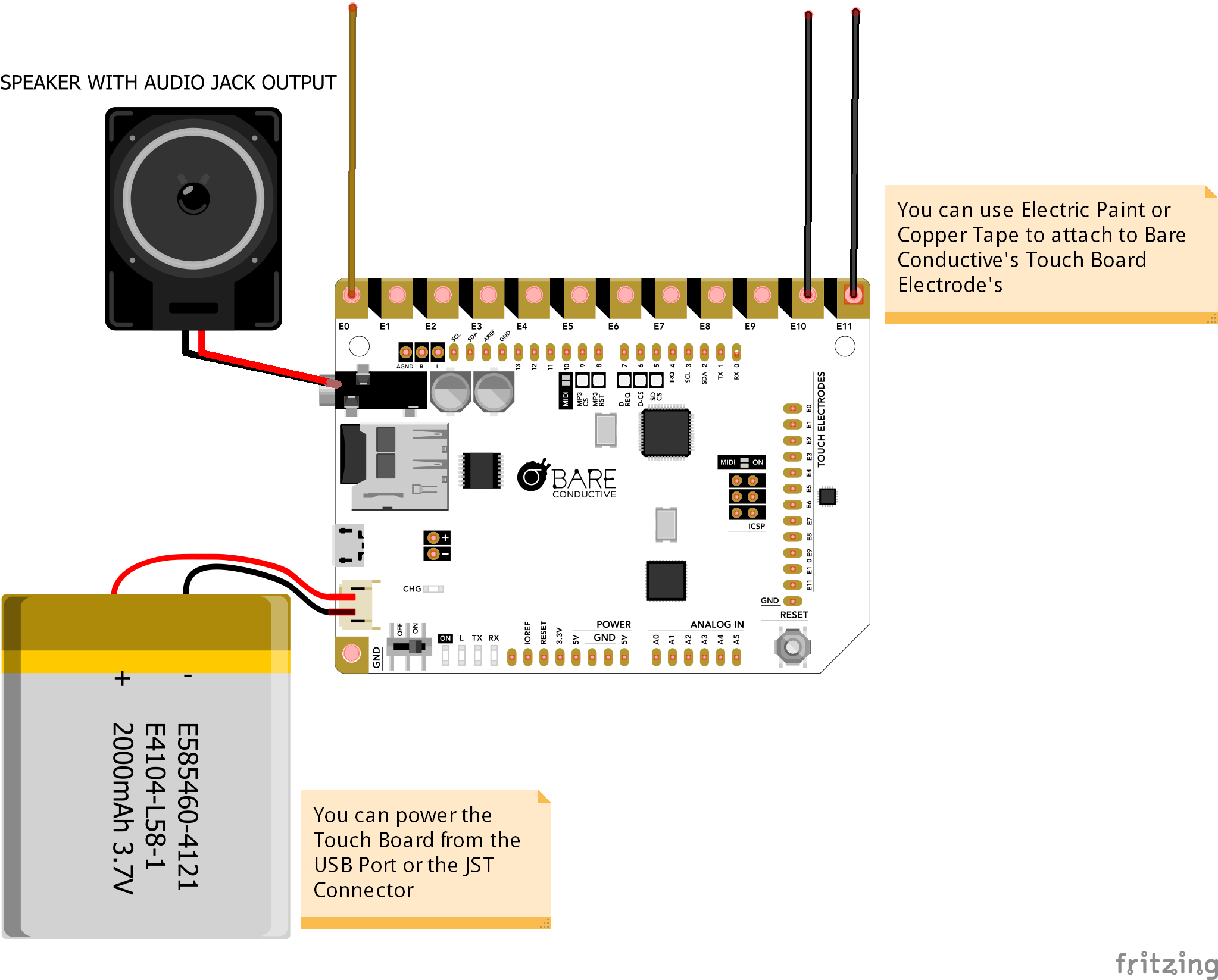

Wiring and Schematics

Download Template

3D Printer Settings

Code

No Programming Needed

You just need to change the Audio Files to add your own sound FX

Step 4: Load Sounds on the MicroSD Card.
The Touch Board comes pre-loaded with an Audio Guide to help you with all it’s features. One of the first things you may want to do is change the sounds that the Electrodes will trigger. Changing the sounds on your Micro SD by plugging in the micro SD card into your computer, it should show up on your desktop under the name “TB AUDIO”.
When you click on it, you should see a series of files that look like the image on the right. The document titled “README.txt” contains instructions on the Touch Board Audio, as well as the Audio Guide in written form. Don’t delete this document unless you remember everything and will never forget the instructions ever again.
Amie's in Game-Hint:
It's important that you keep all the files in the top level of the SD card, a lot of these files are related to the workings of the Touch Board, so deleting or moving them may affect your board’s functionality. You will see twelve tracks titled:
TRACK000.mp3
TRACK001.mp3
TRACK002.mp3 up to TRACK011.mp3
00 is for electrode 0, 01 is for electrode 1, 02 is for electrode 3, each TRACK name has to be named to match the electrode. Also make sure you do not have multiples on the SD Card (example TRACK000.mp3 TRACK000.mp3)
These are the files you need to replace to input your own audio. Bare Conductive recommended  mp3cut to clip your own mp3 sound files. It free, simple and easy to use. Make sure the files are named correctly on the sd card.

Things Used
  • Bare Conductive Touch Board Starter Kit The Kit comes with 1 x Touch Board 1 x Electric Paint 10ml Tube 1 x Electric Paint 50ml Jar 1 x Guidebook 1 x MicroSD Card 1 x MicroSD Card Reader 1 x Micro USB Cable 1 x Mini Speaker 10 x Alligator Clips (colours vary) 1 x Stencil 1 x Stencil Brush 12 x Sticky Tabs 3 x Velcro Stickers 2 x Paper Cutouts
  • Bare Conductive Touch Board You only need to buy this you don't purchase the Bare Conductive Starter Kit
  • Bare Conductive Electric Paint 10mlYou only need to buy this you don't purchase the Bare Conductive Starter Kit
